How to 3D print
on fabric.

01

Choose a fabric the nozzle can grip

Open-structure textiles work best: tulle, bobbinet, powernet, polyester mesh, organza and loose-weave stretch knits. The molten polymer needs holes to flow through and lock around — that mechanical interlock, not glue, is what holds the print on. Dense wovens like cotton poplin or twill give the filament almost nothing to bite into and will peel. Synthetic fibres (polyester, nylon, elastane) bond better than cellulose ones because they soften slightly at nozzle temperature.

02

Print a base layer, then pause

Print one or two layers of your design directly on the bed first, then pause the print (insert an M600 or a pause-at-height command in your slicer). Lay the fabric flat over the printed layers and continue. The remaining layers extrude through the fabric and fuse into the base layer below, sandwiching the textile inside the print. This is the single biggest difference between a piece that survives wear and one that flakes off after an hour.

03

Tension the fabric — flat, not stretched

Tape the fabric to the bed on all four sides with high-temperature or masking tape, keeping it drum-flat but not pulled taut. Stretched fabric relaxes after the print and buckles the geometry. Any ripple higher than your layer height will be hit by the nozzle, so run your hand over the surface and re-tape until it is genuinely flat. Clips on the bed edge work for small pieces; for full panels, tape plus a frame is more reliable.

04

Dial in temperature, speed and squish

Run the nozzle 5–15 °C hotter than usual so the polymer stays fluid long enough to wick into the weave. Slow the first fabric layer to 15–25 mm/s and increase flow slightly (105–110%) so material is pressed into the textile rather than skimmed over it. Set the Z offset so the first layer over the fabric is slightly squished — remember the fabric itself adds 0.1–0.4 mm of height, which your slicer knows nothing about. Turn part cooling off or very low for that layer.

05

Match the material to the movement

TPU (Shore 85–95A) is the default for garments: it flexes with the body, survives repeat wear and tolerates the hotter nozzle. PLA is fine for stiff decorative panels and prototypes but cracks at fold lines. PETG sits in between and bonds well to polyester. Print flexibles with a direct-drive extruder, retraction near zero, and a straight filament path — a Bowden setup will fight you at these speeds.

06

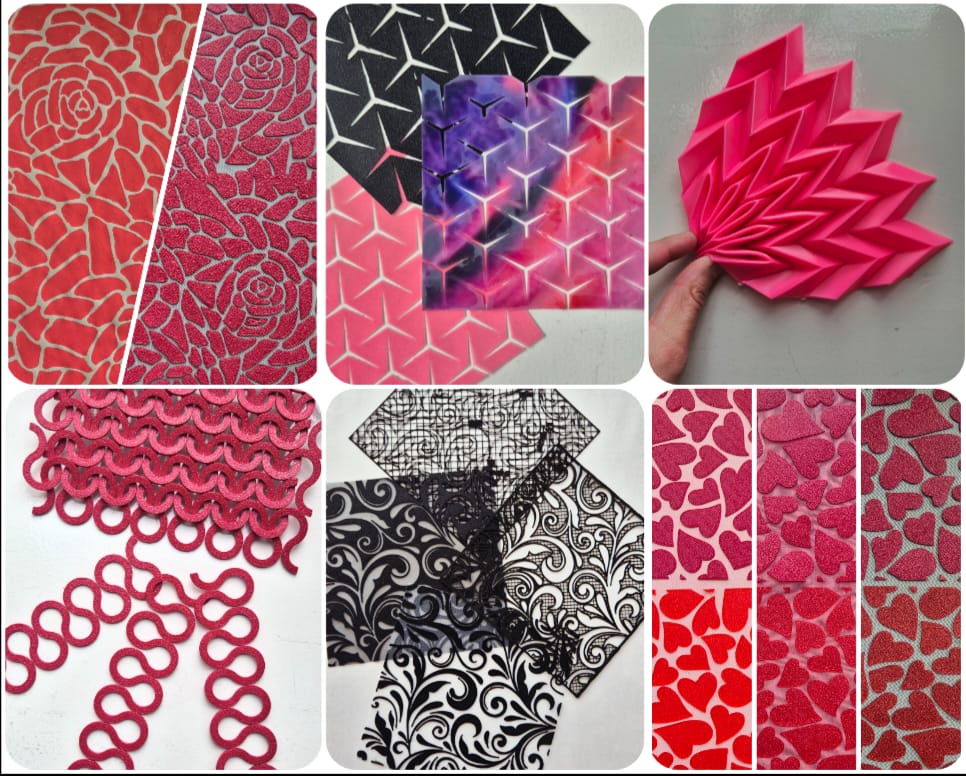

Design for drape, not for strength

Break large shapes into small tiles, scales or hexagons connected by bare fabric. The gaps are the hinges — they are what lets a printed panel bend around a shoulder or waist. Keep individual tiles under roughly 20–30 mm across in areas that need to curve, and keep the printed layer thin (0.6–1.2 mm) so the piece stays light. Test one 100 × 100 mm swatch per fabric-and-material combination before committing to a full panel.
